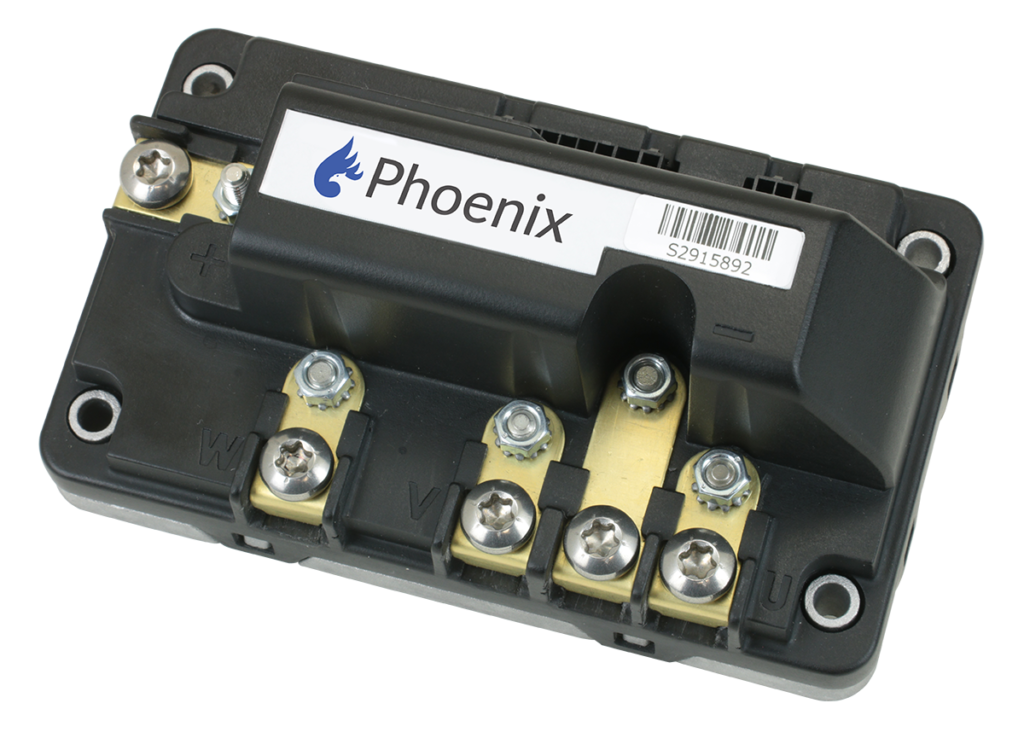

Phoenix Family of Motor Controllers

The Phoenix Family of Motor Controllers is “one of a kind” in the world of motion control today. From its power-to-size ratio to the ability to control multiple motor technologies, to the wide range of input voltages and output currents, Phoenix simply has no equal.

The Phoenix family has been developed for a wide variety of applications in the following industries: Material Handling, Floor Care, Robotics, Elevated Work Platforms, Industrial Equipment, Light Construction Equipment, Utility Tugs & Pushers, Small Electric Vehicles, Oil & Gas, etc.

Aside from a traction controller, the Phoenix Family can also be configured for various Chore applications such as Pumps, Blades, Vacuums, and Scrub Brush Motors. There are specific features that come with chore applications such as precise speed monitoring, safety features for enabling and stopping, and being able to hold a specific motor speed regardless of load.

CANbus communication also provides for additional reliability and safety and allows Phoenix to be easily integrated with other CAN enabled devices.
*AC Induction available 2020

  • Brushed (PMDC), Brushless (BLDC or PMAC) and AC Induction* supported with the same HW
  • Up to 250A (2 min) Peak Output Current
  • 12V or 24V-48V nominal input voltages
  • CAN J1939, UART, or I2C Interface
  • Very High Power-to-Size Ratio
  • 5.5”x3.3”x2.2” (140mm X 84mm X56mm)
  • Multiple Configurable Analog and Digital I/O
  • Configurable for Traction, Chore, or Steering Control
